Punching Machines
The constant research and technological innovation has allowed Euromac to create a range CNC punching machines that are performing, highly productive and with the lowest running costs. We offer numerous and versatile configurations that will satisfy all of your production needs, from the small to large industry optimizing whatever your requirements are.
Technology
The structure of the Euromac range of punching machines consists of a Meehanite® standardised spheroidal cast iron monobloc casting which has a material tensile strenght of 700N / mm2, designed with the FEM method (finite element method). The frame structure of the machine has been increased in size which allows the machine to operate at higher speeds ensuring greater stability and therefore working precision.

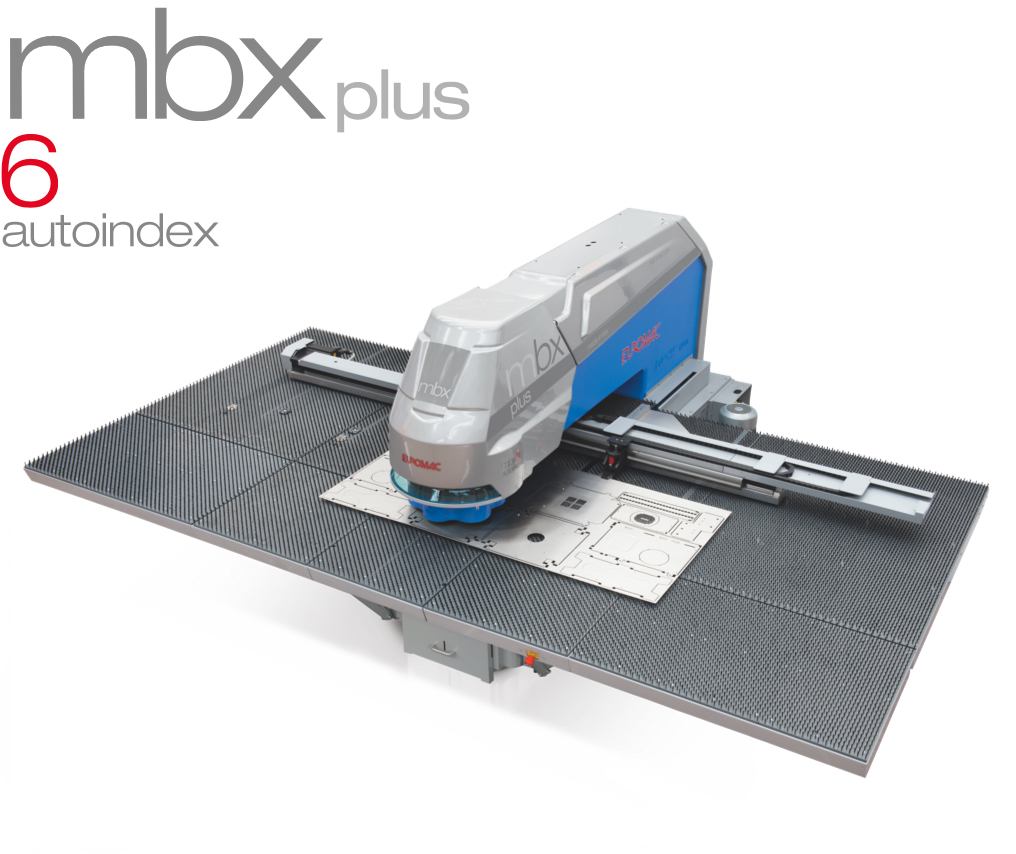

The patented AUTOINDEX system of direct transmission rotation of the stations has a reduced number of mechanical components so as to guarantee strength, greater reliability and precision, with less maintenance.

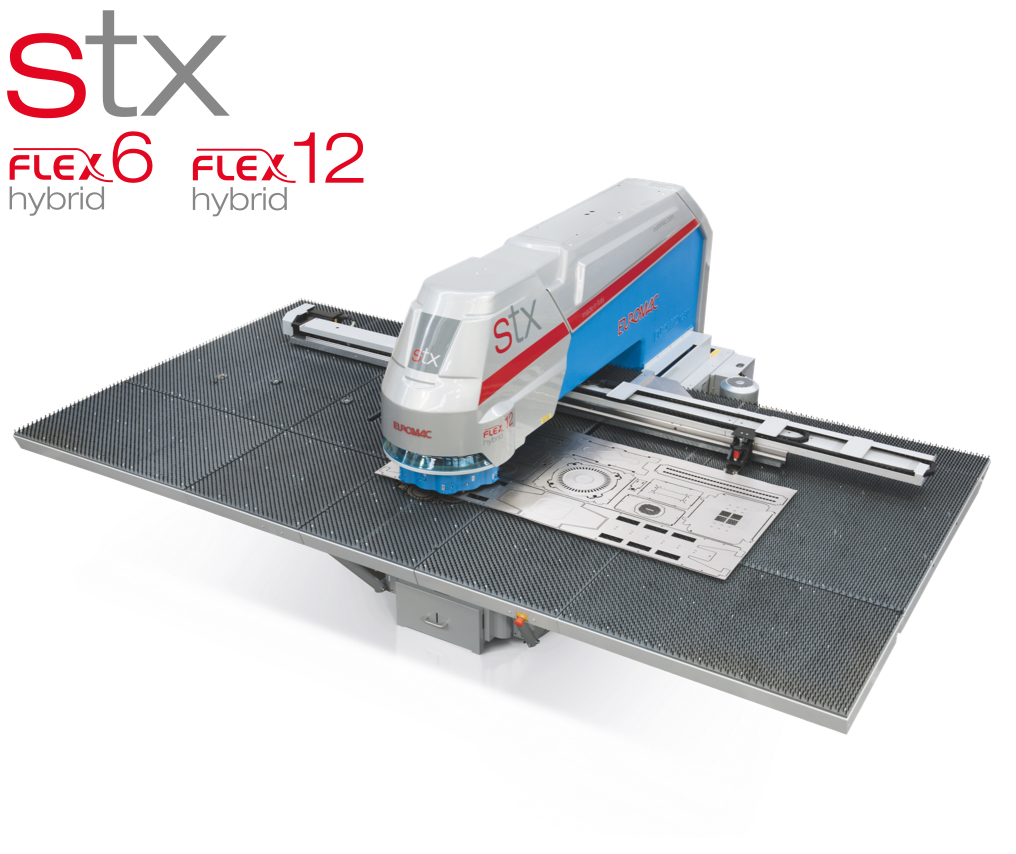

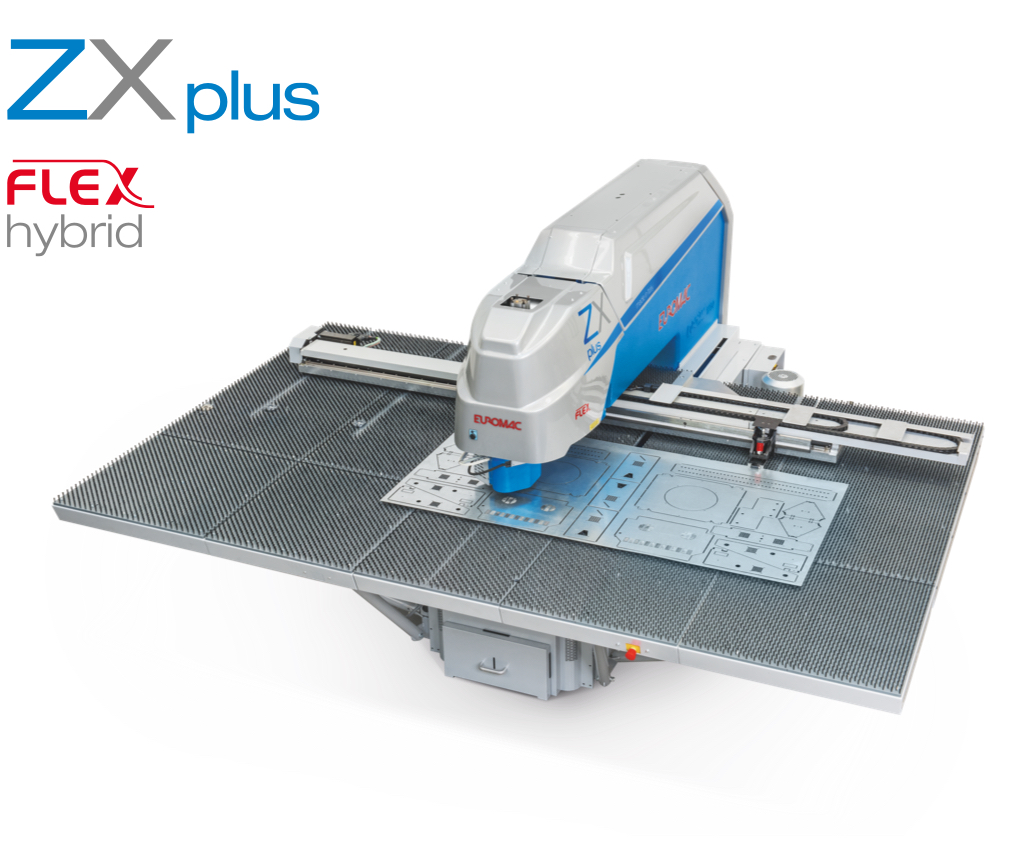

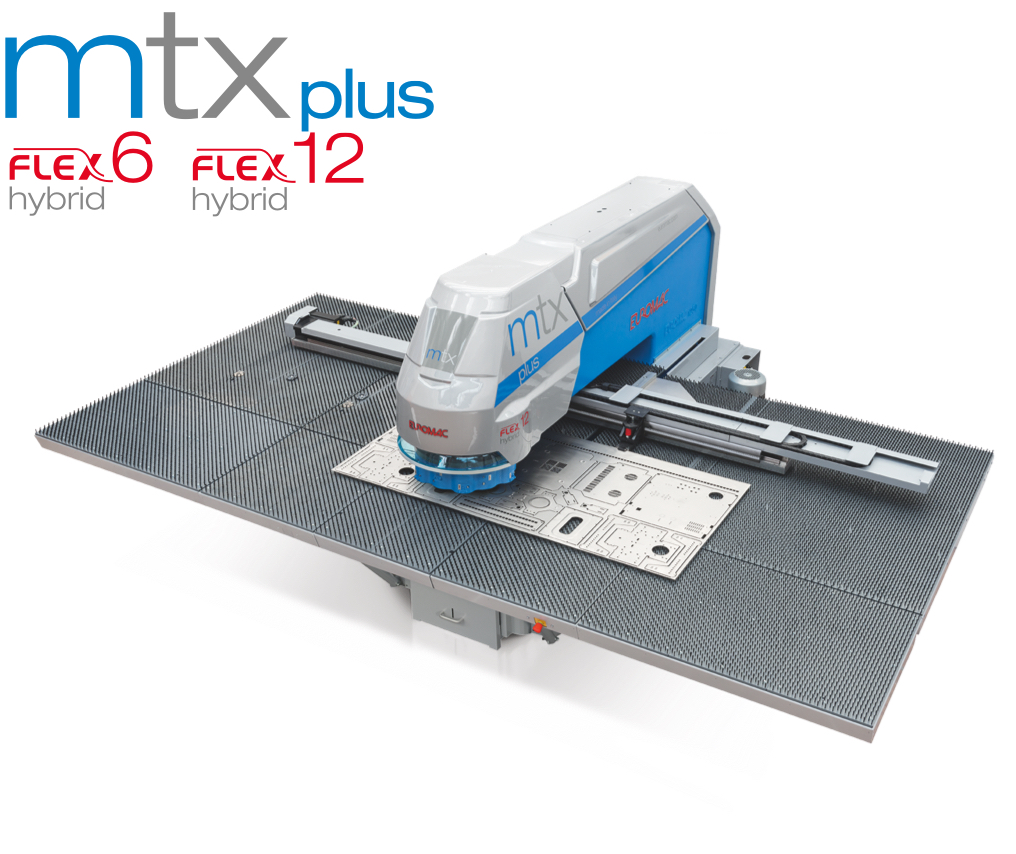

Electrical or hydraulic system? Why not get the best of both? Our range of punching machines introduces the FLEX system, which combines the power of hydraulics with the precision of the electronic control, in addition to obtaining a low electrical consumption, in fact on some machines where the FLEX system is present, only 8.5 kw are required with an average consumption of 4.5 kw in punching.
Tools

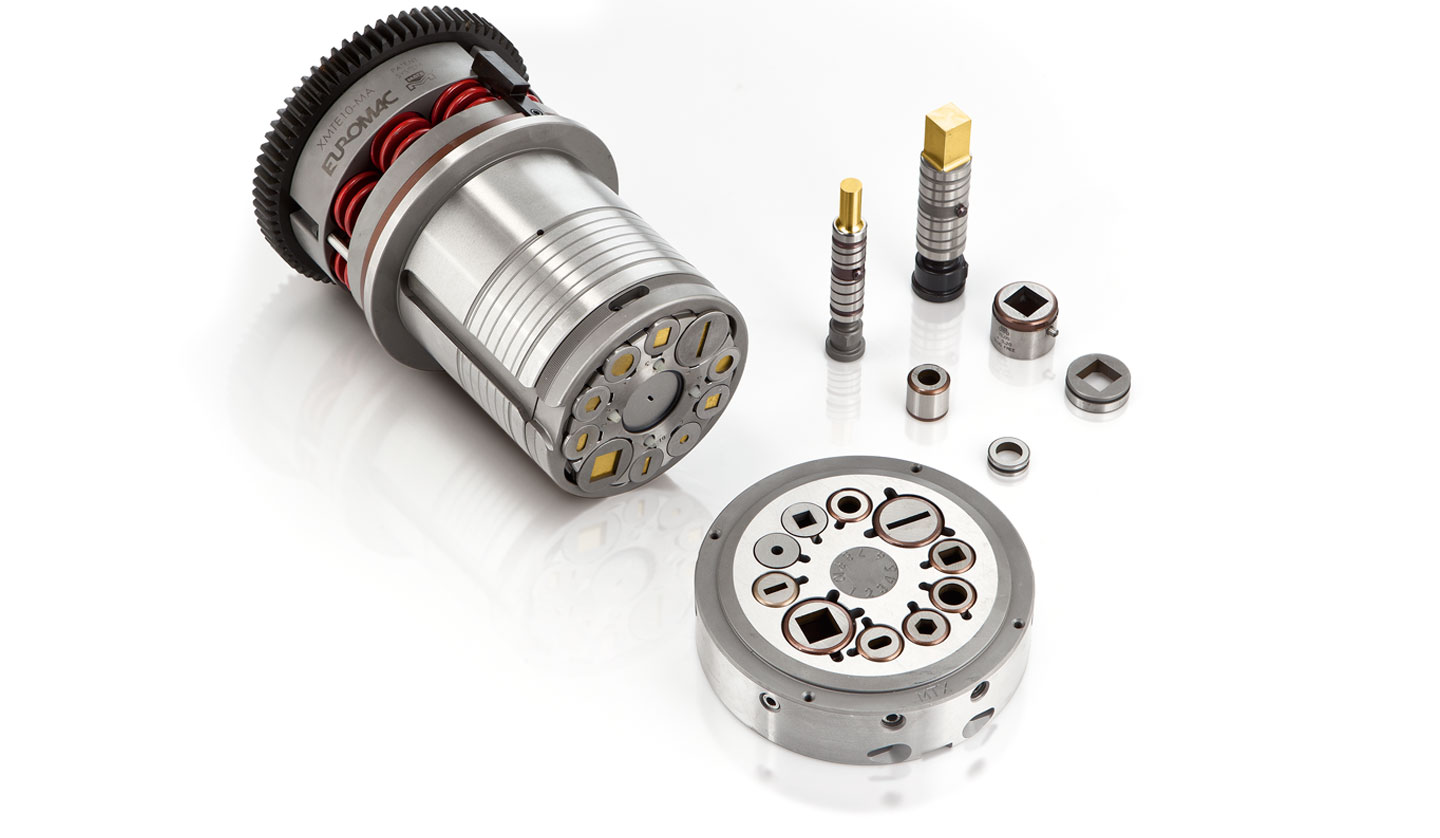

FMTE 10
- 8 tools up to Ø 12,7 mm (A Type)
- 2 tools up to Ø 24 mm (FMTE6 Type)
- Adjustable punch length up to 9 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 6 mm
- Antimark magnetic kit option
- Adjustable striping spring force according to material and thickness

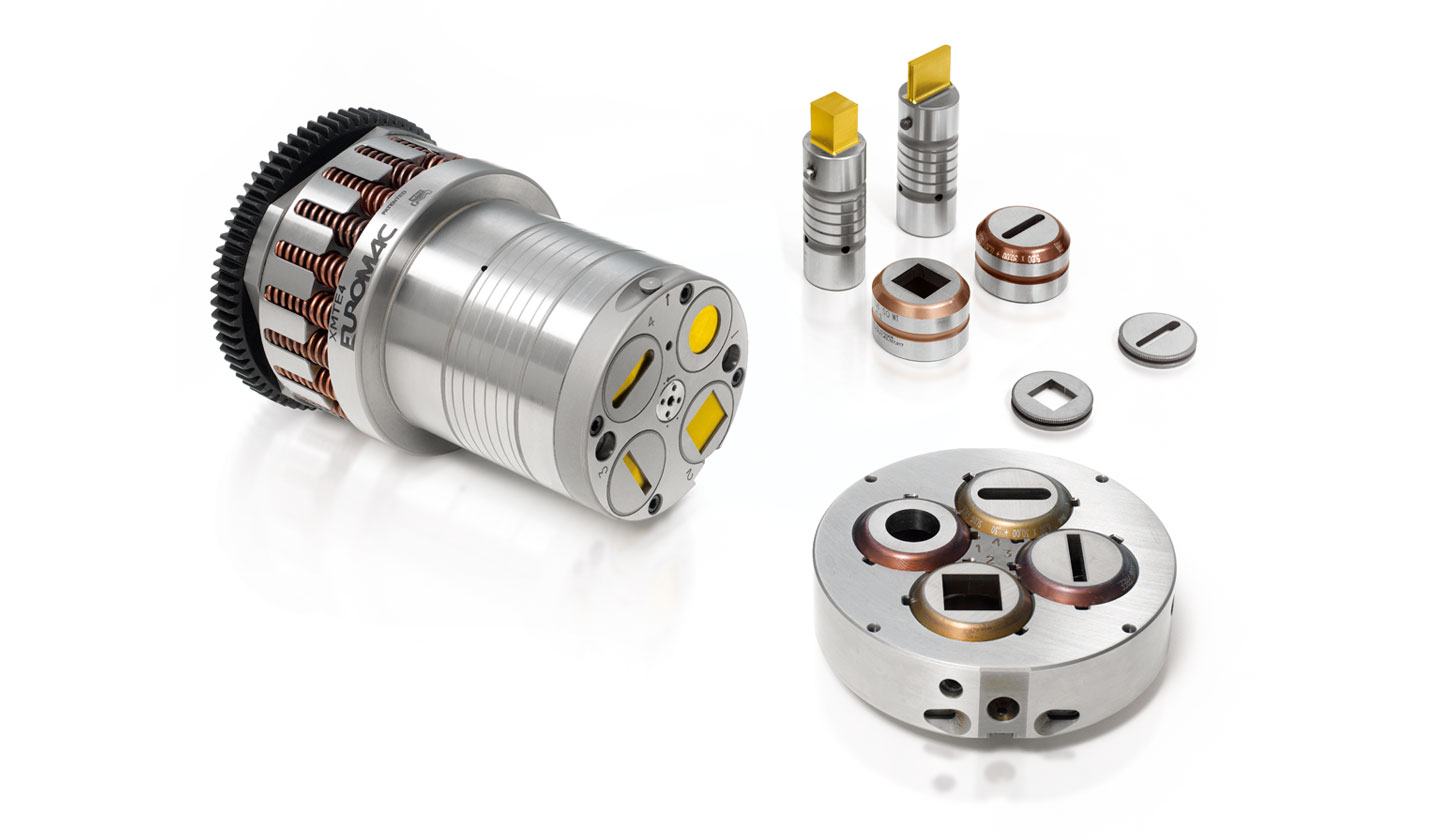

FMTE 4
- 4 tools up to Ø 31,7 mm (B Type)
- Adjustable punch length up to 11 mm grinding life
- Full guided punches
- Up to 22 tons – Maximum thickness up to 12,7 mm
- Adjustable striping spring force according to material and thickness
Video
Playlist
Optionals

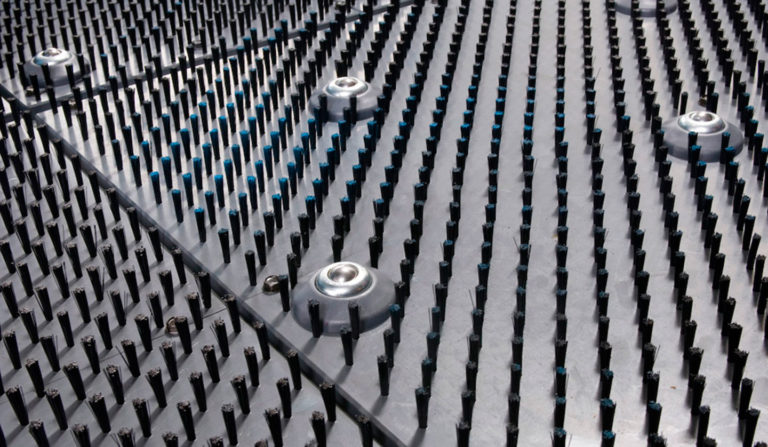

Combined brushes and balls tables
Our tables are equipped with Brushes to evitate to mark the sheet during the moving,we can make a combination with balls, recomended in case of sheets over 50 kg.

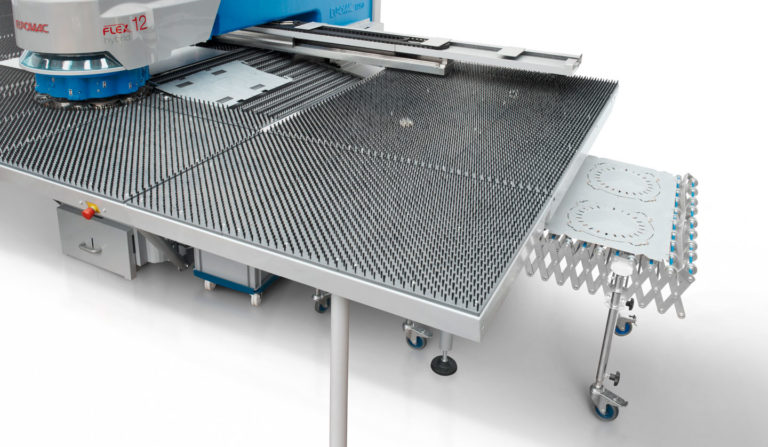

Roller conveyor for ejecting parts
Roller conveyor 1000×1200 for ejecting parts from the chute door with settable length up to 4000mm c/w plastic box with wheels 570×370 H.210.
